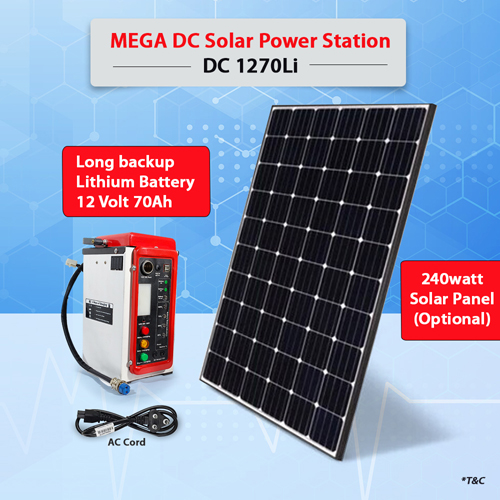

400 Watt MEGA DC Solar Power Station, DC-1270Li
₹18032 ₹37817
- Battery : Lithium Iron Phosphate LiFePo4
- Rated Power Output : 400 Watt
- DC - Output : 12V- Cigarette Lighter Socket
Other DC Outputs : 5V to 20 V & DC Ports
Panel Indicators : Yes (Battery Level / Status - Charging Indicators - Battery 'ON - OFF' Indiactor)
Charging Input Power (4 Way of Recharge) :
- AC Wall Charger
- Solar Panel PV Charge (MPPT).
- Car Charge Input (From Cigarette Socket)
- LPG / Petrol Genset Charger
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Product Information
- Battery: Lithium Ion Phosphate LiFePo4
- Type : Prismatic 3.2 V- 70 AH
- Battery Voltage : 12.8 V (4S)
- Peak Capacity : 12.8V - 70 AH (896 Wh)
- Single Cell Equivalent Capacity : 280 Ah @ 3.2 V
- Life Cycles :≥ 1500 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
- BMS (Battery Management System) : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
- Shelf Life: Charge Every 3 - 6 Months
DC - Output- 12V- Cigarette Lighter Socket
- Output Voltage : 12.8 ± 1 V
- Continous Output Current : 12 A (Max. 150 Watt)
- DC Output Over Load Current Protection : Yes >13 A (Through Fuse Provided in C.G Pin)
- DC Output ShortCircuit Protection : Yes (Disconnect Load Recovery)
Other DC Outputs - 5V to 20 V & DC Ports
- USB Output (2 Ports) : 2* 5V DC, 2.4 A (12W Per Port)
- 19.5 V DC -DC 5521 (1 Port) : 1 x 19.5V, 5A-100 W (5.5mm x 2.1 mm)
- 12V DC -DC 5521 (2 Ports) : 2 x 12V, 5A-60 W Each (5.5mm x 2.1 mm)
- USB & DC Over Load Current Protection : Yes
- USB & DC Output short Circuit Protection : 5V & 19.5V (Auto, Disconnected Load Recovery) For all 12V Outputs : Short Circuit Protection through Glass Fuse
- Illumination / LED Flash Lighting : 1 * 12W (High Bright).
Panel Indicators
- Battery Level / Status : Level Shows 4 Segment (25%, 50%,75%,100%)
- Charging Indicators : Solar Energy / Mains AC 230V / Engine charger Separate Indicators for Each Charging Source
- Battery 'ON - OFF' Indiactor: Indicator Glows if Battery is Active

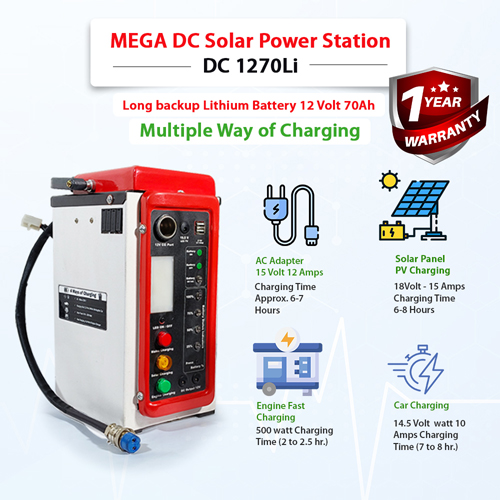

DC - Charging Input Power (4 Way of Recharge)
- AC Wall Charger (Charging From Grid Power) (AC input 120V to 275V) : AC - DC Adapter (CC/CV) - 15V-12Amps (150 Watt Max.) (Inbuilt) Charging Time > 6 Hours
- Solar Panel PV Charge (MPPT): 18V - 15Amps - Max 240 W, Charging Time 5-6 Hours
- Car Charge Input (From Cigarette Socket) : 14.5V, 10 Amps Max. Charging Time 7 - 8 Hours
- LPG / Petrol Genset Charger : 15 V - 30 Amps (500 Watts) Charging time < 2.5 Hr.
- Heat Disipation : Air Cooling (Fan), Aluminium Housing
- IP Rate : IP 32 Protected from Water Spary < 15˚From Vertical
Working Condition
- Charge Temperature : 0˚C ~ 45˚C
- Operating Usage Temp. : -10˚C ~ 45˚C
- Operation Storage Humidity : 5% ~ 90%

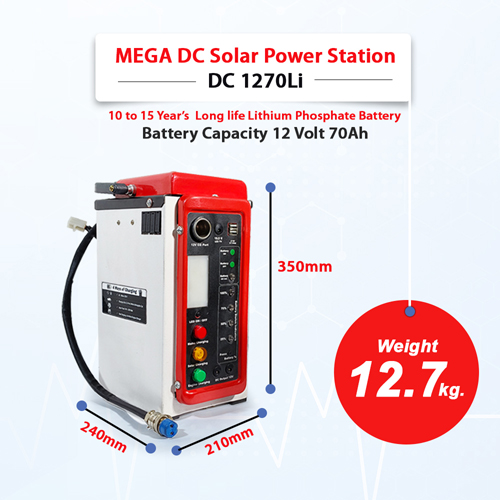

Product Size & Weight
- Dimensions (LxWxH) : 210*240*350mm
- Net Weight : 12.7kg
- Warranty : 2 Year on Battery * & 1 Year for Complete Product (Solar Power Station)
Package Contents :
- MEGA DC Solar Power Station - 400W
- 1* Car Charger (Cigarette Lighter Cable)
- 1* DC - Solar Charging Cable
- Solar Pannel 240 Watt with MPPT (Optional)
