70Ah-12.8V, Inverter Lithium Battery for Home Inverter, Backup Expander (Lithium Iron Phosphate, LiFePo4)

( 2 Reviews )

₹12771 ~~₹16602~~

7037695394 7037695394

Battery : Lithium Iron Phosphate LiFePo4
DC Output : 12V- Cigarette Lighter Socket
Other DC Outputs : 5V to 20 V & DC Ports

DC - Charging Input Power (4 Way of Recharge)

AC Wall Charger
Solar Panel PV Charge (MPPT)
Car Charge Input (From Cigarette Socket)
LPG / Petrol Genset Charger

Application

To run DC home appliances with minimum cost at remote areas where no AC Power Available.
For Running Electrical and Electronic Devices like: Music System, DC Water Pump, DC LED bulb, Lithium Battery Charging,
DC Fan, DC Fridge,Mobile Phone Charging, Flood Light Recharging of LED Torch / Lantern, Power Inverter (upto 300 VA) Etc

Description

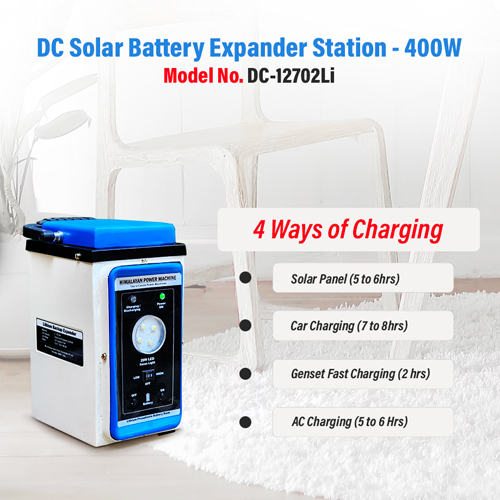

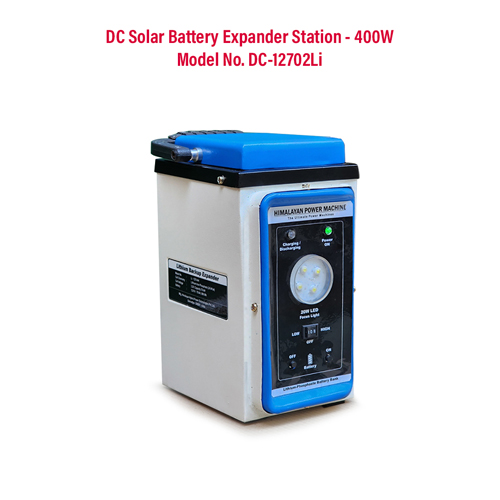

This DC-12702Li is a High Capacity DC to DC Power Station with two mode 15 watt high power bright LED light. .
It is Self Explanatory from the name "Expander" by itself that it is having a big size LiFePo4 Battery of 12.8V - 70 Ah, which is largest capacity available among Portable DC Power Stations, Hence Customer / User can enjoy parallel Running of Multiple Electronic DC Gadgets with very long Backups & Maximum Total DC Output of 400 Watt.
This power bank (Backup Expander) can be charged by 4 ways i.e. mains (Grid Power), car charging, Solar Panel or Engine Charger (Quick Charge).

This Premium product is the Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is a more than 25-year company that offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Qty:

Product Information

Battery: Lithium Iron Phosphate LiFePo4
Cell Type: Prismatic 3.2 V- 70 AH
Battery Voltage: 12.8 V (4S)
Peak Capacity : 12.8V - 70 AH (896 Wh)
Life Cycles: ≥ 1500 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
BMS (Battery Management System): Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
Shelf Life : Charge Every 3 - 6 Months

DC - Output- 12V- Cigarette Lighter Socket

Output Voltage : 12.8 ± 1 V
Continous Output Current : 12 A (Max. 150 Watt)
DC Output Over Load Current Protection : Yes >13 A (Through Fuse Provided in C.G Pin)
DC Output ShortCircuit Protection : Yes (Disconnect Load Recovery)

Other DC Outputs - 5V to 20 V & DC Ports
Illumination / 2 mode LED Flash Lighting : 1 * 15W (High Bright).

Panel Indicators

Charging Indicators : Solar Energy / Mains AC 230V / Engine charger Separate Indicators for Each Charging Source
Battery 'ON - OFF' Indiactor: Indicator Glows if Battery is Active

DC - Charging Input Power (4 Way of Recharge)

AC Wall Charger (Charging From Grid Power) (AC input 120V to 275V): AC - DC Adapter (CC/CV) - 15V-12Amps (150 Watt Max.) (Inbuilt) Charging Time > 6 Hours
Solar Panel PV Charge (MPPT): 18V - 15Amps - Max 240 W, Charging Time 5-6 Hours
Car Charge Input (From Cigarette Socket): 14.5V, 10 Amps Max. Charging Time 7 - 8 Hours
LPG / Petrol Genset Charger : 15 V - 30 Amps (500 Watts) Charging time < 2.5 Hr.

Natural Air Cooling , Metal Housing
IP Rate : IP 32 Protected from Water Spary < 15˚From Vertical

Working Condition:

Charge Temperature : 0˚C ~ 45˚C
Operating Usage Temp. : -10˚C ~ 45˚C
Operation Storage Humidity : 5% ~ 90%

Product Size & Weight:

Dimensions (LxWxH) : 210*220*320 mm
Net Weight : 10.9kg
Warranty : 3 Year on Battery * & 1 Year for Complete Product (DC Solar Battery Expander Station)
