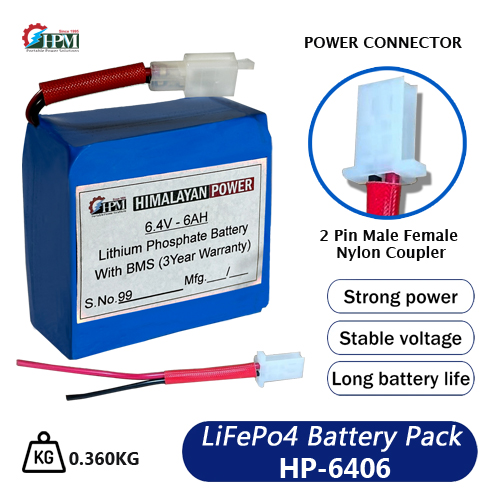

6AH-6.4V, Lithium Phosphate Battery(3.2V-2S), Inbuilt BMS
- Battery : Lithium Iron Phosphate LiFePo4
- Peak Capacity : 6.4V - 6000 mah (37 Wh)
- Operating Voltage (V): 5.6-7.2V
- Body Material/Type : Battery Heat Shrinkable Sleeve
Application
Bicycle, Scooter, Toys, Mini Drones, Bluetooth devices, Lite Home Power applications such as Vacuum Cleaner, WIFI modem routers backup battery, LED Street Light, Power Tool, Power Bank, Medical Equipment, Defence/Military Applications.
Description
Lithium Ion Phosphate Battery have 4 to 5 times longer cycle life, Compare to Other types of Batteries have higher power density and wider operating temperature range than the above type.
Nowadays, Lithium- Iron – Phosphate (LiFeP04) also called LFP Battery (Cell Voltage 3.2V) & Lithium ion (NCM) Battery (Cell Voltage 3.7 V) are Most Selling Batteries.
Lithium ion Batteries have Many – Many Advantages
Over Lead Acid Batteries but also have some shortcomings too. Those safety issues are addressed by Compulsory Adding BMS (Battery Management with Each Battery Cell. The BMS is an Electronic Protection Circuit – PCB, which Cuts off Battery output Whenever cell Voltage is Low, Over Charges/ Discharge Short Circuit or Over Temperature Conditions.
If this Protocol is not followed, then all types of Lithium Cell or Batteries are susceptible to Exploded under overloads , Short Circuits, Over Charge Voltage and under High Temperature conditions,These batteries are available at wholesale rates,relatively low self-discharge rate,
This Premium product is the Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is a more than 25-year company that offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices..
Product Information
- Battery: LiFePo4
- Cell Type: 32700 (Cylindrical), 3.2V, 6000 mah
- Battery Voltage: 6.4V (2S)
- Peak Capacity: 6.4V - 6000 mah (37 Wh)
- Single Cell Equivalent Capacity: 1200 mah @ 3.2 V
- Life Cycles: ≥ 1500 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
- BMS (Battery Management System): Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
- Shelf Life: Charge at Least Once Every Month
- BMS Type: PCB
Electrical Characteristics
- Operating Voltage (V): 5.6-7.2V
- Charging Mode: CC/CV
- Recommended charging voltage (V)
