700VA Solar Power Station, In-built Lithium Battery, Portable, Model: Solar 700Li-Eco

700VA Solar Power Station, In-built Lithium Battery, Portable, Model: Solar 700Li-Eco

( 2 Reviews )

₹19850 ~~₹31694~~

8273144405 8273144405

Battery : Lithium Iron Phosphate LiFePo4
Rated Power Output : 500Watt
Voltage & Type : AC - 230 V,50Hz, Modified Sine Wave
Other DC Outputs : 5V to 12 V & DC Ports

Charging Input Power (4 Way of Recharge) :

AC Inbuilt Charger
Solar Panel PV Charger
Car Charge Input (From Cigarette Socket)
LPG / Petrol Genset Charger

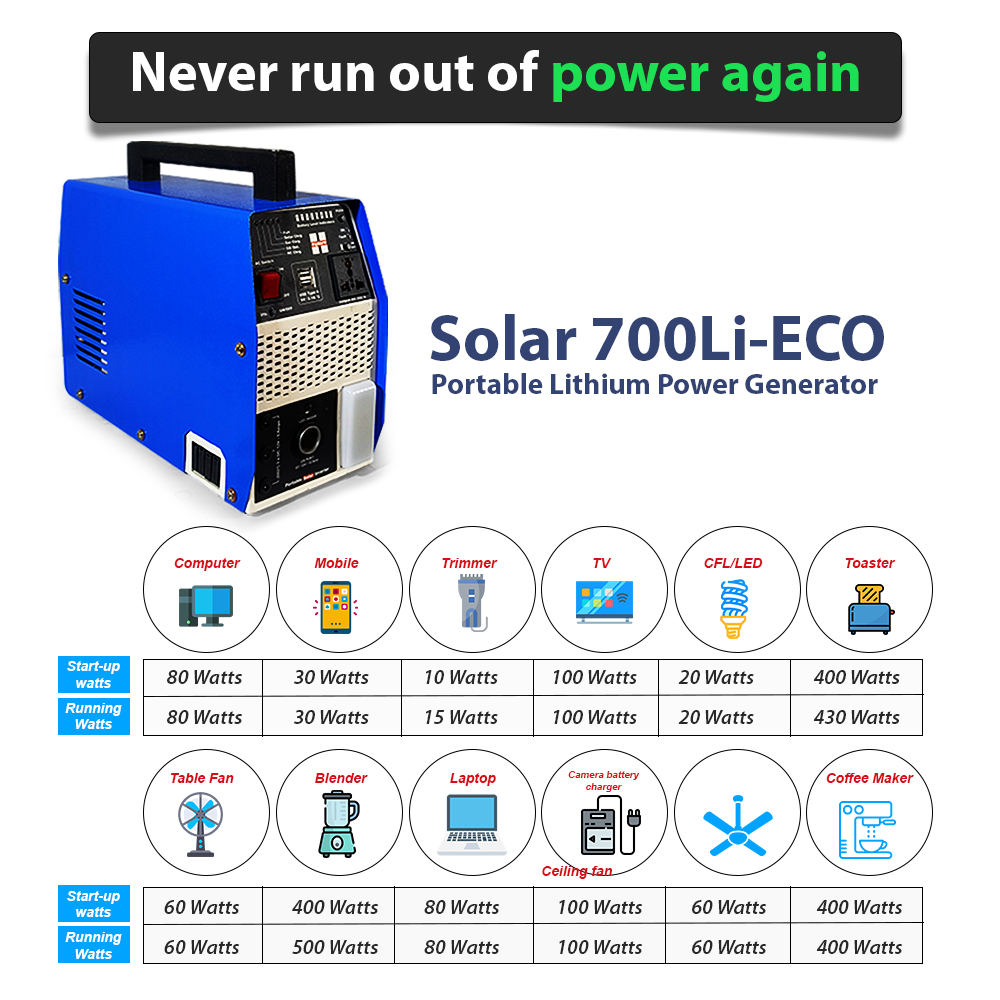

Application

Due to Big Lithium Battery (70Ah), It has Long Backup Hence more Useful for home use in case of Power cuts. It supports 240 Watt MPTT Solar Panel for Quick Charging of Battery. It is Portable and Can also Carried for Outdoor Fields Jobs, Shop and Commercial Appliactions.

Descripton

Solar 700-ECO is a Portable multifactional Lithium power Generator.
This power station gives AC 230V output & also 2* DC-5V for phone charging & 4* 12V DC output for running 12V DC appliances. This solar 700 Li-ECO model has a inbuilt 15W High Power LED Light.
The main advantage of this Power Station is that, it is portable and support both AC and DC loads.

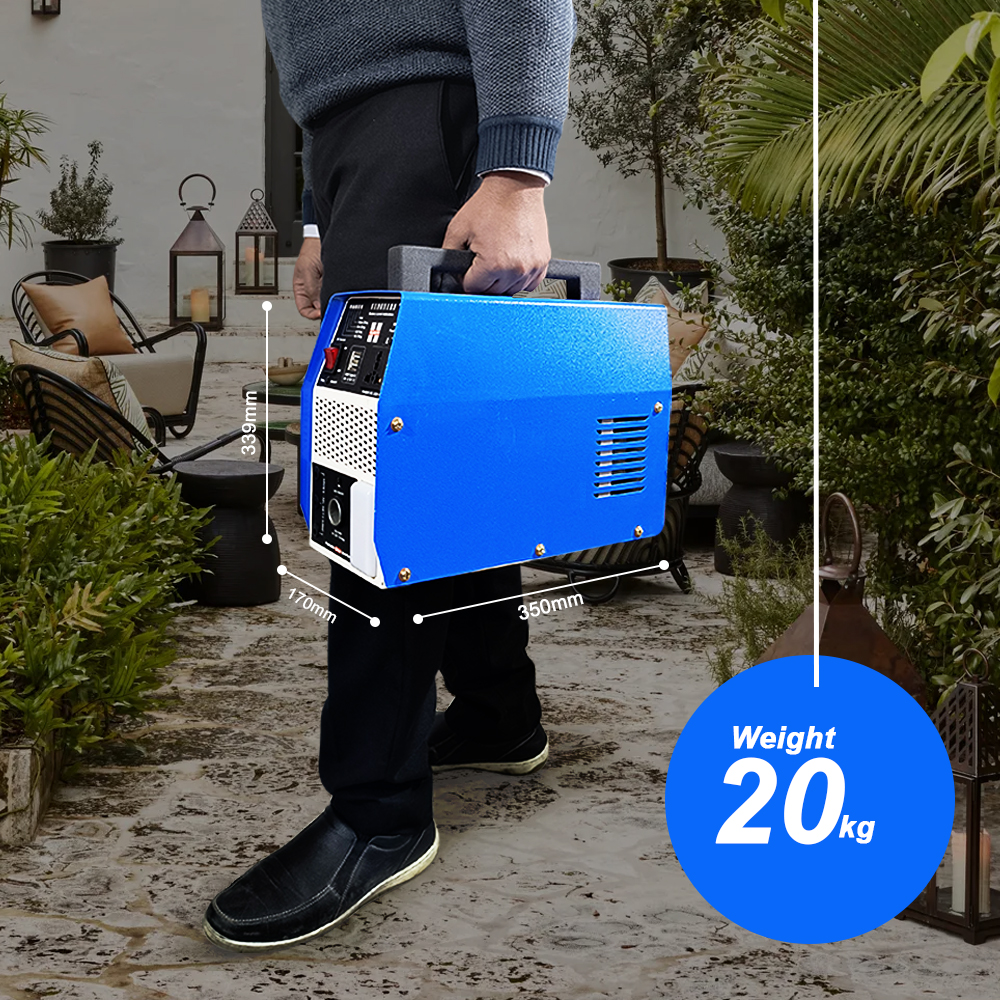

This is a lightweight Portable Power Station & can be used at household & as well can be carried away anywhere for outdoor/ field power applications
This solar station has a big Lithium Power Pack of 12.8V-70AH, which is largest in its Class & hence have a longer Backup period.

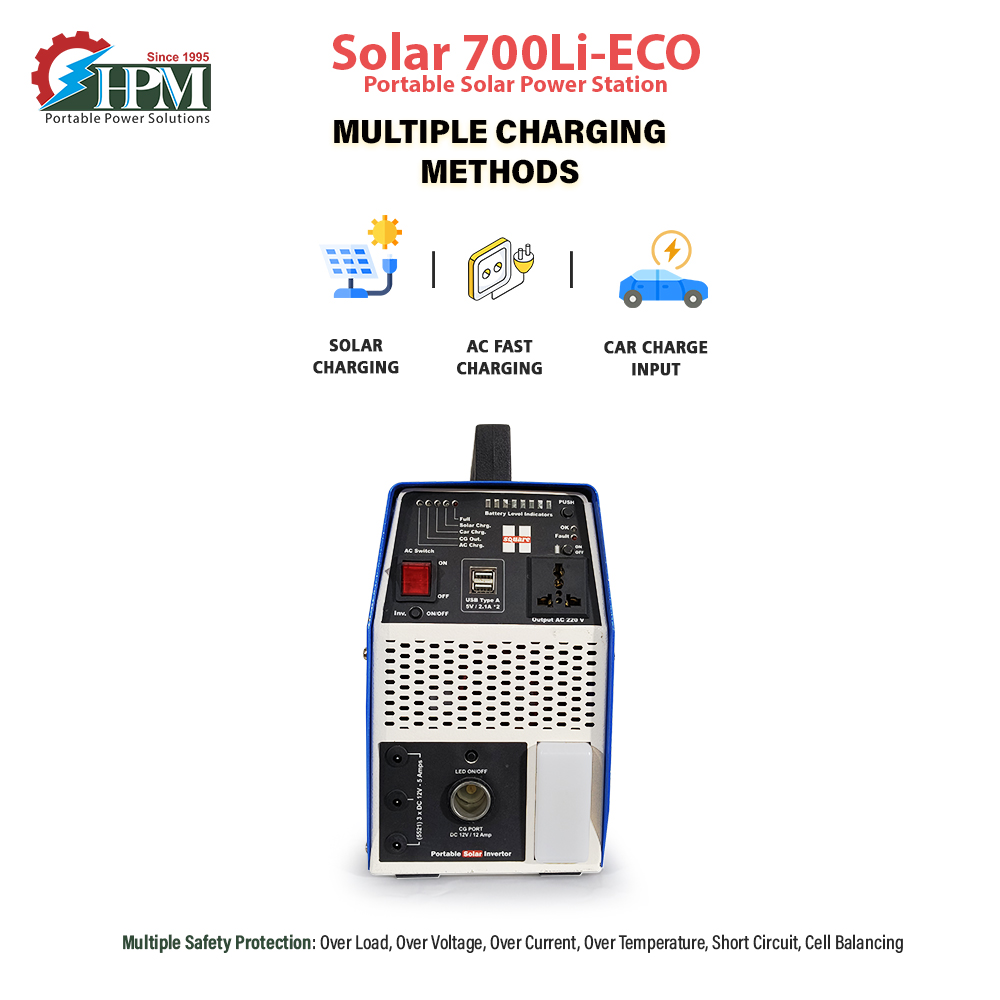

The Lithium Battery of this Solar Invertor can be charged by any of the 4 ways :
1) AC 230 V mains (Grid Power) Inbuilt 12A-150Watt fast charger
2) Car charging through C.G Port in running car.(C.G Load provided)
3) Charging with solar Panel (Optional)
4) Engine Charger -700 watt, super-fast charging (Optional)

The Remaining Battery Power can be judged trough its “8-Battery Status LED Indicators”
This product has similar Application and use like other Portable Solar Generator Like Anker Portable Power Station, SARRVAD, ECOFLOW, Jackery, PowerSmart, Etc..

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Qty:

Product Information

Battery: Lithium Iron Phosphate LiFePo4
Type : Prismatic 3.2 V- 70 AH
Battery Voltage : 12.8 V (4S)
Life Cycles : ≥ 1500 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
Single Cell Equivalent Capacity : 280 Ah @ 3.2 V
Solar Charge Controller & Protections : 12V- 10 Amps Solar Charge Controller-Multifunction
Multiple Safety Protections: Over Load, Over Voltage, Over Current, Short Circuit
Battery Expansion : Yes, Expandable, can Add 1 Pack 12.8V - 70 AH
Shelf Life : Charge Every 3 - 6 Months

AC 230 Volt Output (Invertor Power Supply)

Continues Rated Power Output : 500 W
Peak Output Power : 600 W
Voltage & Type :AC - 230 V,50Hz, Modified Sine Wave
THD : < 3% (Full R Load)
Power Factor : 1 (Unity)
Over Load : 116% < Load <150% @ 2min / 150% < Load <200% @ 10 S
Power Less (No Load & Turned- Off) : < 10W
AC Output Back time @ 70% of rated load (VA) : ≥ 2 Hours & 15 Minutes
Max. Effecient (>70% Load) : 92%
Output Socket : Indian Version AC Socket x 1(US/UK/EU/AU Socket)

DC - Output- 12V- Cigarette Lighter Socket

Output Voltage : 12.8 ± 1 V
Continous Output Current : 12 A (Max. 150 Watt)
DC Output Over Load Current Protection : Yes >13 A (Through Fuse Provided in C.G Pin)
DC Output ShortCircuit Protection : Yes (Disconnect Load Recovery)

Other DC Outputs - 5V to 20 V & DC Ports

USB Output (2) : 2* 5V DC, 2.4 A (12W Per Port)
12V DC -DC 5521 (3 Ports) : 2 x 12V, 5A-60 W Each (5.5mm x 2.1 mm)
USB & DC Over Load Current Protection : Yes
USB & DC Output short Circuit Protection : Yes (Disconnect Load Recovery)
Illumination / LED Flash Lighting : 1 * 12W (High Bright).

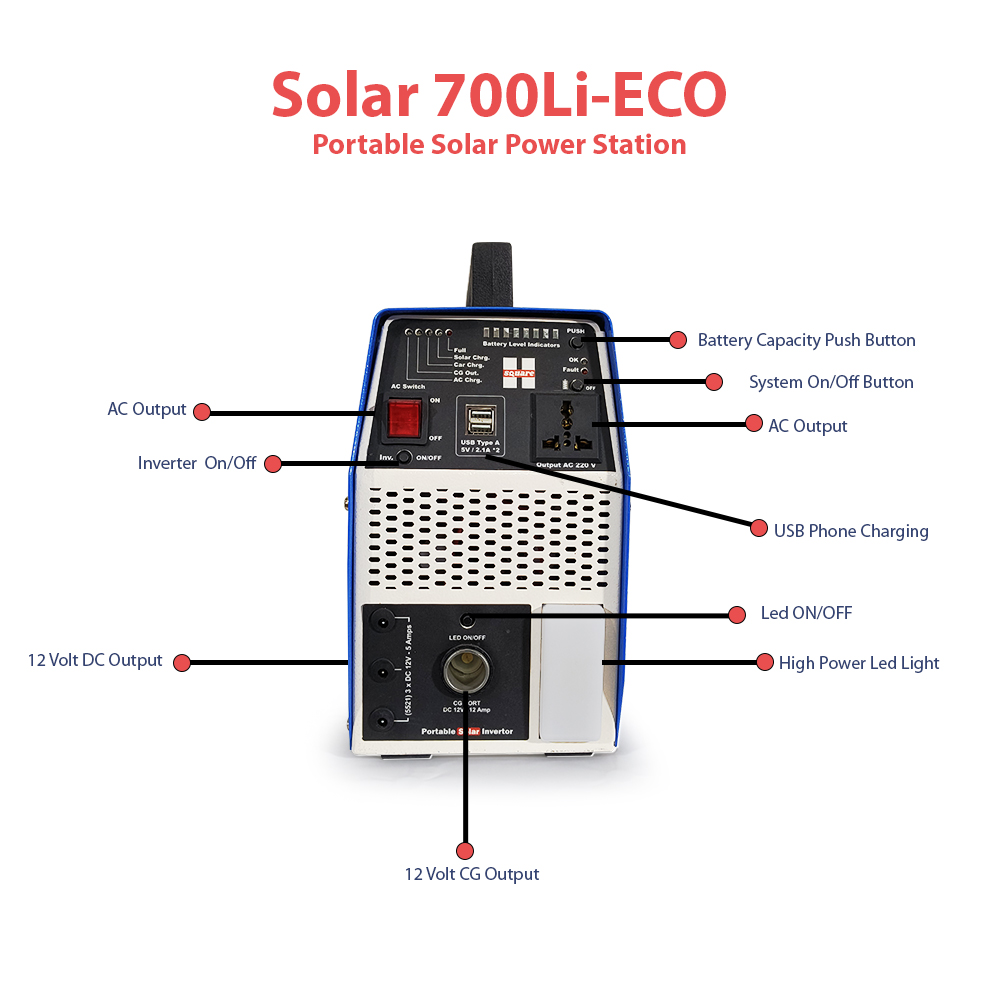

Indicators in Panel

Battery Level / Status Indicators : Battery Level Shows 8 Segment LED's
Function Indicators : Fault / AC Output / PV Charges / Mains Charging / Car Charges

Charging Input Power (4 Way of Recharge)

AC Inbuilt Charger (Charging From Grid Power) (AC input 120V to 275V) : AC - DC Adapter (CC/CV) - 8mm Port 15V-12A (150 Watt Max.) Charging Time > 6 Hours
Solar Panel PV Charge :MPPT Solar Panel 15V / 15 Amps - Max 240 W, Charging Time 5 - 6 Hours
Car Charge Input (From Cigarette Socket) : 12 - 14V, 10 Amps Max. Charging Time 7 - 8 Hours
LPG / Petrol Genset Charger : 15 V - 30 Amps (500 Watts Maximum) Charging time < 2.5 Hr.
Heat Disipation : Air Cooling (Fan), Aluminium Housing
IP Rate : IP 32 Protected from Water Spary < 15˚From Vertical
