1KVA Solar Home Inverter, with In-built Lithium Battery, Portable, Model: PL-900W

1KVA Solar Home Inverter, with In-built Lithium Battery, Portable, Model: PL-900W

( 2 Reviews )

₹24800 ~~₹30428~~

8273144405 8273144405

Battery : Lithium Iron Phosphate LiFePo4
Rated Power Output : 900VA
Voltage & Type : AC - 230 V,50Hz, Pure Sine Wave
DC - Output : 12V- Cigarette Lighter Socket
Other DC Outputs : 5V to 20 V & DC Ports

Charging Input Power (4 Way of Recharge) :

AC Inbuilt Charger
Solar Panel PV Charge
Car Charge Input (From Cigarette Socket)
LPG / Petrol Genset Charger

Application

Due to Big Lithium Battery (70Ah), It has Long Backup hence more useful for home use in case of Power cuts. It support by 240 Watt MPPT Solar Panel for Quick Charging of Battery. It is Portable and Can also Carried for Outdoor Fields Jobs, Shop and Commercial Appliactions

Descripton

This is a Portable multifunctional Lithium Battery UPS Inverter.
This inverter gives AC 230V output & also 2* DC-5V for smartphone charging & 4* 12V DC output for running 12V DC appliances. This 900 Inverter Model has a inbuilt 15W High Power LED Light.
The main advantage of this solar inverter is that, it is a UPS, Hence it can supply Main AC 230V to home appliances & when main power fails, the home load automatically shift over to Battery Inverter Power.

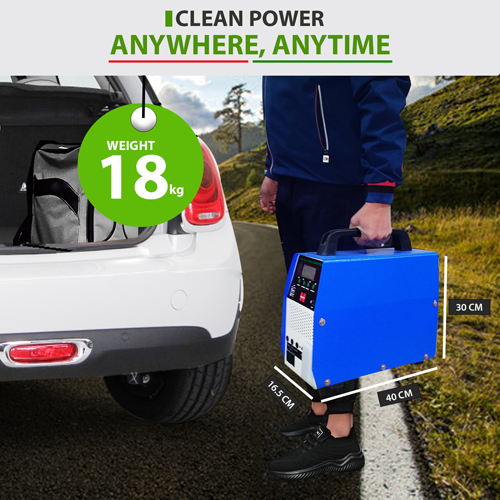

This is a lightweight Portable Power Inverter & can be used at Household & as well can be carried away anywhere for outdoor/ field power applications.
This inverter has a big Lithium Power Pack of 12.8V-70AH, which is largest in its Class & hence have a longer backup period.

The Lithium Battery of this Solar Invertor can be charged by any of the 4 ways :

1) AC 230 V mains (Grid Power) Inbuilt 13A-150Watt fast charger
2) Car charging through C.G Port in running car 150W.(C.G Load provided)
3) Charging with Solar Panel 200W (Optional)
4) Battery can be expanded(optional).

The Remaining Battery Power can be judged through its LCD Display.

This product has similar application and use like other Portable Solar Generator Like Exide, Eapro, Su-Kam, Luminous, Lento, Microtek, Etc..

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Qty:

Product Information

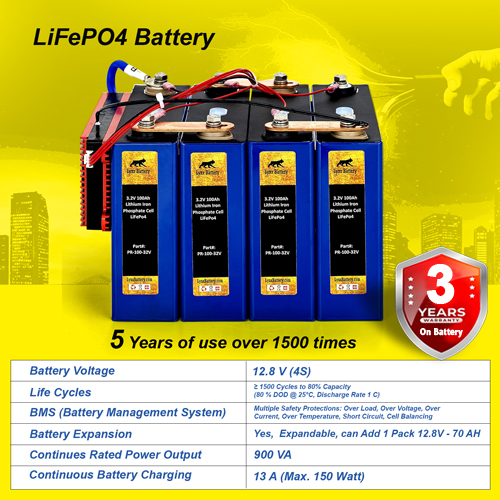

Battery: Lithium Iron Phosphate LiFePo4
Cell Type : Prismatic 3.2 V- 70 AH
Battery Voltage : 12.8 V (4S)
Peak Capacity : 12.8V - 70 AH (896 Wh)
Life Cycles : ≥ 1500 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
BMS (Battery Management System) : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
Battery Expansion : Yes, Expandable, can Add 1 Pack 12.8V - 70 AH
Shelf Life : Charge Every 3 - 6 Months

AC 230 Volt Output (Invertor Power Supply)

Continues Rated Power Output : 900 VA
Peak Output Power : 950 VA
THD : < 3% (Full R Load)
Voltage & Type : AC - 230 V,50Hz, Pure Sine Wave
Power Factor : 0.9
Over Load : 116% < Load <150% @ 2min / 150% < Load <200% @ 10 S
Power Less (No Load & Turned- Off) : < 10W
AC Output Back time @ 70% of rated load (VA) : ≥ 2 Hours & 15 Minutes
Max. Effecient (>70% Load) : 90%

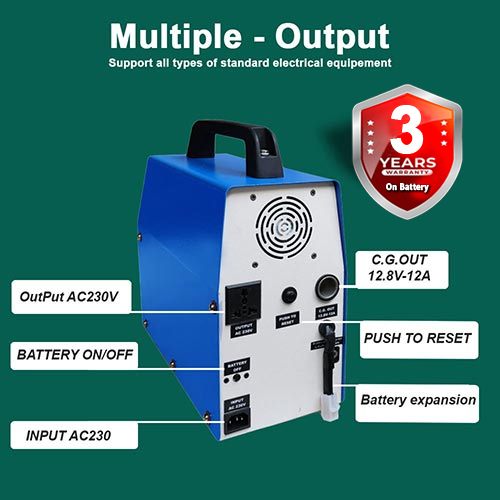

Output Socket : Indian Version AC Socket x 1(US/UK/EU/AU Socket)

DC - Output- 12V- Cigarette Lighter Socket

Output Voltage : 12.8 ± 1 V
Continous Output Current : 12 A (Max. 150 Watt)
DC Output Over Load Current Protection : Yes >13 A (Through Fuse Provided in C.G Pin)
DC Output ShortCircuit Protection : Yes (Disconnect Load Recovery)

Other DC Outputs - 5V to 20 V & DC Ports

USB Output (2) : 2* 5V DC, 2.4 A (12W Per Port)
12V DC -DC 5521 (3 Ports) : 2 x 12V, 5A-60 W Each (5.5mm x 2.1 mm)
USB & DC Over Load Current Protection : Yes
USB & DC Output short Circuit Protection : Yes (Disconnect Load Recovery)
Illumination / LED Flash Lighting : 1 * 12W (High Bright).

Indicators in Panel

Battery Level / Status Indicators : LCD Display
Function Indicators : Fault / AC Output / Mains Charging /Modes/ Load Percentage,Battery Voltage, Mains Voltage, temprature

Charging Input Power (4 Way of Recharge)

AC Inbuilt Charger (Charging From Grid Power) (AC input 120V to 275V) : AC - DC Adapter (CC/CV) - 8mm Port 15V-13A (180 Watt Max.) Charging Time > 6 Hours
Solar Panel PV Charge : MPPT Solar Panel - 15V / 15 Amps - Max 240 W, Charging Time 5 - 6 Hours
Car Charge Input (From Cigarette Socket) : 12 - 14V, 10 Amps Max. Charging Time 7 - 8 Hours
LPG / Petrol Genset Charger : 15 V - 30 Amps (500 Watts Maximum) Charging time < 2.5 Hr.

Heat Disipation : Air Cooling (Fan), Aluminium Housing

IP Rate : IP 32 Protected from Water Spary < 15˚From Vertical
