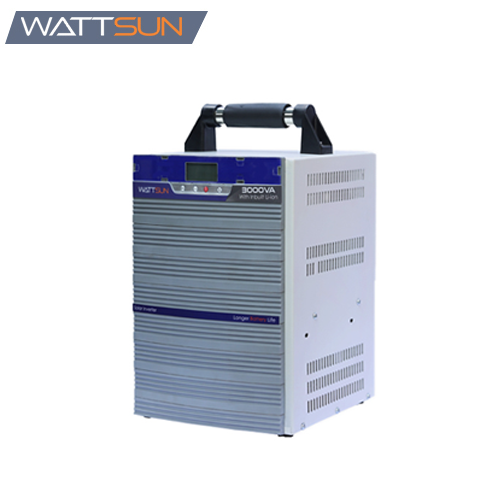

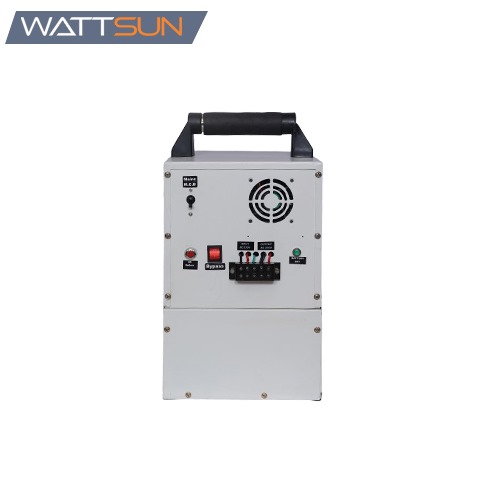

UPS-3000W- Wall Mount UPS Inverter

( 2 Reviews )

₹53180 ~~₹55255~~

8273144405 8273144405

This is a advance DSP technology based Portable Inverter-UPS with inbuilt Lithium Phosphate battery. All HPM Inverter-UPS are solar panel compatible, hence generates a Green energy. This inverter gives AC 230V -3000 VA output. This is a lightweight Portable Power Inverter & can be used at Household & as well can be carried away anywhere for outdoor/ field power applications. HPM Lithium inverter is a dual use product which can be used as a Inverter for back up power during Mains/Grid failure & as well as UPS power for computers and IT services.This inverter has a big Lithium Power Pack of 25.6 V-105 AH- 2688 Wh,HPM's advance Lithium battery have a 5000 cycles life & hence customer will continue to enjoy HPM's Lithium Inverters as long as 15 years without any battery maintenance .

The Lithium Battery of this Solar Invertor can be charged by any of the 2 ways :
1) AC 230 V mains (Grid Power) Inbuilt bi-directional fast charger which charges the Li-battery @ 20 Amp-500 Watt/hr.
2) Charging with Solar Panels,install 240 Watt or 250 Watt solar panel having OCV 36 Volt. For fast charging Max. 4 solar panels can be connected in parallel

Apart From above, the Battery Back up Period can be further extended by connecting additional Battery bank of 90Ah at its Expansion Socket.The Remaining Battery Power can be judged through its LCD Display.This product has similar application and use like other Brand Like Excide, Apro, Su-KAm, Luminous,Lento, Microtech Etc.

Application

Household use,Shops,Offices,Computers,Printers,IT use,Drone Battery Charging Smartphone Tablet, Laptop Car Air Compressor, Lalten, Mini Fridge, Car Fridge, Led Light, Flood Light, Wifi - Router, Vacuum Cleaner, Projector, Coffe Maker, Blender, Cordless Drill, Tav Mug, Rice Cooker, Stand Fan, Cpap,Go Pro Cmaera, Camera, Electric Pan, Speaker, Electric Blanket, Desktop,Tv, Soldring Iron, Water Pump, Hair Strighter, Electric Kettle, Electric Multi Cooker, Cutter, Bldc Fan, Grinder, Hair Dryer, Egg Boiler, Lithium Battery Charger, Electric Lunch Box, Roster

This Premium Product is the outcome of excellent hardwork of HPM's R&D Engineers. Himalayan Power is a more than 25-year Company that offers complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after sale & services and spare parts at very economical prices.

Qty:

Product Information

Battery

Cell Chemistry : Lithium Iron Phosphate LiFePo4
Cell Type : Prismatic, 3.2 V- 105 AH
Battery Voltage & Configuration : 25.6 V (8S MODULE)
Peak Capacity : 25.6V - 105 AH (2688 Wh)
Life Cycles / Battery Life : ≥ 15yr. 5000 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
BMS (Battery Management System) : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Active Cell Balancing & equalizer
Battery Expansion : Yes, Expandable, can Add 1 Pack 25.6V - 90 AH
Shelf Life : Charge Every 3 - 6 Months

AC 230 Output Volt Output (Invertor AC O Power)

Maximum AC Output Power : 3000VA (2400Watt)
Voltage & Type : AC - 230 V,50Hz, Pure Sine Wave
Input Voltage : Inverter Mode:120V-280V
UPS Mode: 180V-260V
Output Voltage : Mains Mode: Same as Input / UPS Mode: 210V±10%
Output Frequency : UPS Mode 50Hz ± 1Hz
Switching : Automatic (from Main to UPS and From UPS to Mains)
UPS Overload : 110%
UPS Short Circuit : 300%
UPS Transfer Time : <15msec
Technology : DSP Controller Based
Resetable Switch Breaker for Total Safety of Connected Appliances : Yes
Auto Reset Function During & After Overload Conditions : Yes
THD : < 2% (Full R Load)
Power Factor : 0.8
Over Load : 110% < Load <120% @ 1 min 120% < Load <150% @ 0.5 S
Power Less (No Load & Turned- Off) : < 10W
AC Output Back-up time @ 50% of rated load (VA) : ≤ 2.5 Hours
Max. Effecient (>70% Load) : < 90%
By pass Switch : Yes,provided
Input / Output Socket : Bakelite Connector HT5-30 Amp

Panel Diplay / Indicators

Battery Level / Status Indicators : LCD Display
Function Indicators : Fault / AC Output / Mains Charging /Modes/ Load Percentage,Battery Voltage, Mains Voltage, Temprature, UPS / Inverter Mode
Heat Disipation : Air Cooling (Fan), Metal Casing (Powder coated)
IP Rate : IP 32 Protected from Water Spary < 15˚From Vertical

Working Condition

Charge Temperature : 0˚C ~ 45˚C
Operating Usage Temp. : -10˚C ~ 45˚C
Operation Storage Humidity : 5% ~ 90%

Product Size & Weight

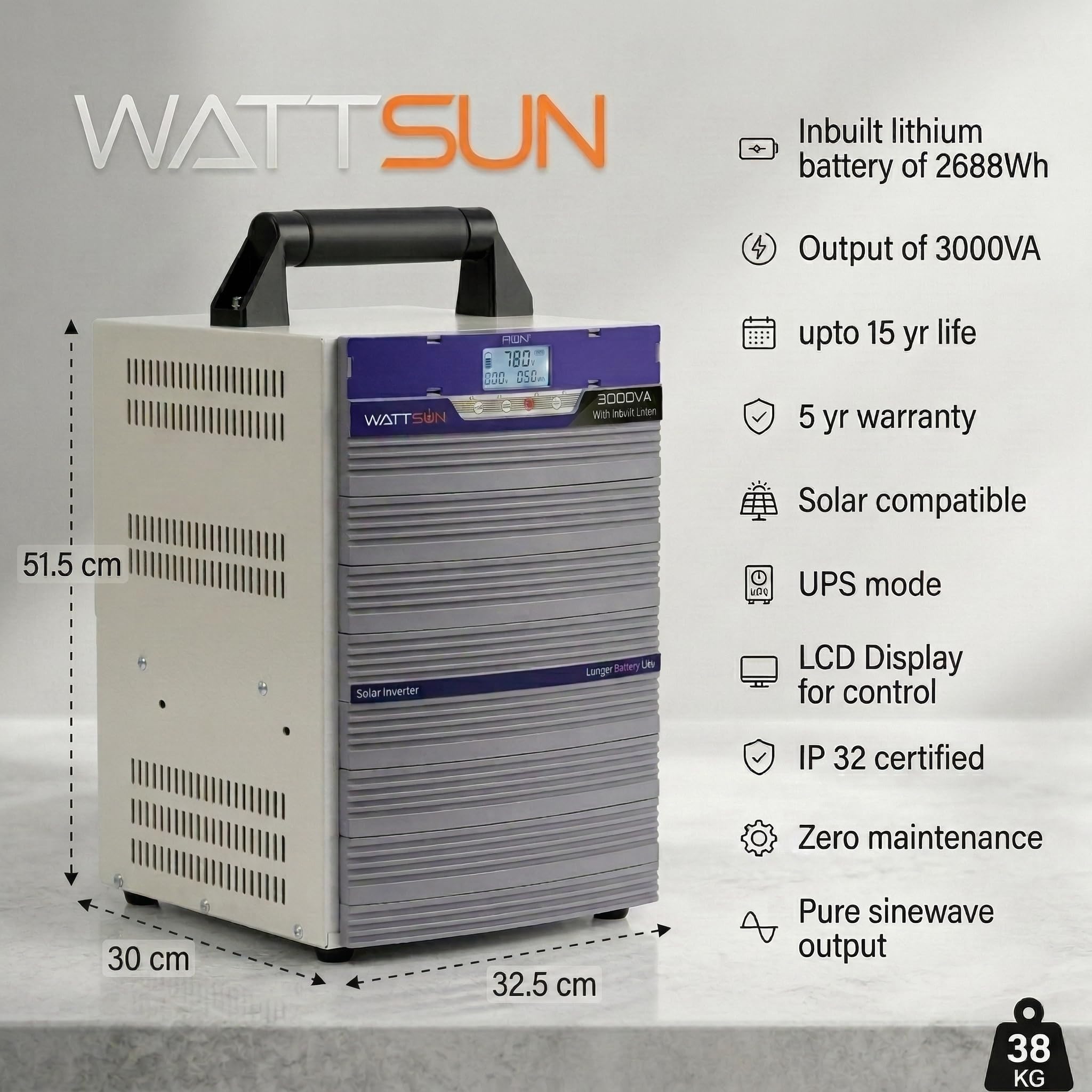

Dimensions (LxWxH) : L280 X W325 X H525 MM
Net Weight : 38 Kg
Warranty : 3 Year on Battery & 1 Year for Complete Product (Solar Inverter)
Package Contents : 1* UPS 3000W Portable Lithium Inverter , 1* 3 pin Mains AC Cord , 1* User Manual , Solar Panel 240W/250 W,OCV 36 V (Optional at extra cost)
